Features:

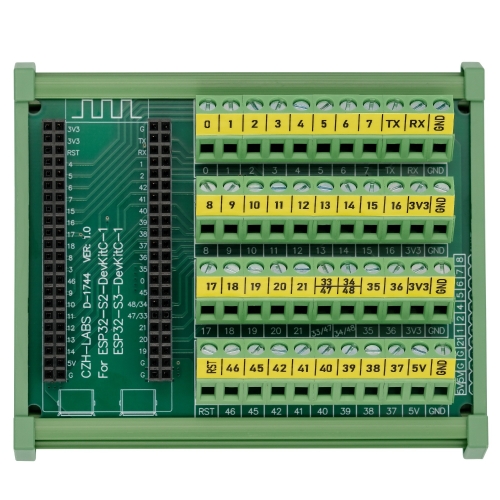

1, Screw Terminal Block Breakout Board for ESP32-S3-DevKitC-1 or ESP32-S2-DevKitC-1.
2, With the breakout board, you can easily extend ESP32-S3-DevKitC-1 or ESP32-S2-DevKitC-1 projects to industrial control applications.
3, PCB mount Terminal Block: pitch 5.0mm/0.197", strip length 7mm, screws - M2.5, steel, Cr3+ Zn plated. pin header and cage - brass. Wire range 28AWG ~ 12AWG / 2.5mm square.
4, FR-4 fiber glass PCB, dual copper layers.
5, Certified for safety with UL, CE, and CQC certified terminal blocks. UL 94-V0 certified PCB.
Note: the item not include ESP32-S3-DevKitC-1 or ESP32-S2-DevKitC-1 module. The breakour board supports ESPRESSIF official ESP32-S3-DevKitC-1 or ESP32-S2-DevKitC-1, but we do not guarantee whether to support third-party modules, you can check the ESPRESSIF official website for more information before buying.
